Kawasaki Mule SX 600 610 Brake Maintenance

October 29, 2025 by Jenny Wilkins

A methodical Kawasaki Mule SX Brake Maintenance routine keeps pedal feel firm, stopping distances short, and drums whisper-quiet. This walkthrough adapts shop best practices to the Mule’s drum setup—so mud, dust, and long ranch days don’t steal performance. Use your interval spreadsheet to time each task, and follow the Kawasaki Mule SX 600 610 Brake Maintenance Guide principles to prevent glazing, pull, or fade before they start.

Kawasaki Mule SX 600 610 Brake Maintenance Guide: Drum System Basics

Unlike disc systems, drums hide wear inside the hub, so inspection discipline matters. The Kawasaki Mule SX 600 610 Brake Maintenance Guide centers on four areas: shoe friction, drum surface, wheel-cylinder health, and hardware/adjustment. During Kawasaki Mule SX Brake Maintenance, watch for tapered shoe wear (sticking slides), heat checking on drum faces, and damp backing plates that hint at seepage. The Kawasaki Mule SX 600 610 Brake Maintenance Guide also stresses spring condition—weak return springs cause drag and heat. Finally, free and lubricate star-wheel adjusters so shoe-to-drum clearance stays consistent. A clean, dry drum with correctly arced contact is the bedrock of reliable Kawasaki Mule SX Brake Maintenance.

Kawasaki Mule SX Brake Maintenance: Step-By-Step Drum Service

Work on level ground, set the park brake, chock wheels, and support with stands. Photograph spring orientation before disassembly.

Wheel-off survey
1. Spin the drum. Light, even brush is normal; grinding suggests grooves or a shoe worn to the rivets. Start your Kawasaki Mule SX Brake Maintenance with a leak check around wheel-cylinder boots and the backing-plate weep holes.
Drum removal
1. Back off the star-wheel through the oblong slot in the backing plate if the drum sticks. Once off, measure inside diameter; replace drums beyond service limit. The Kawasaki Mule SX 600 610 Brake Maintenance Guide favors replacement over aggressive machining on utility machines that see heavy loads.

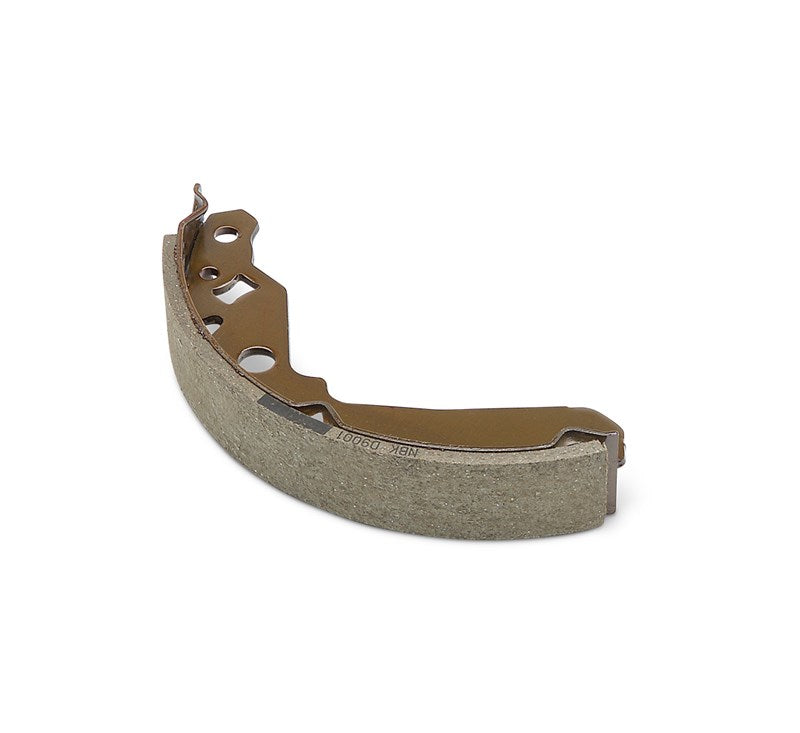

Shoe and hardware inspection
1. Confirm lining thickness and even contact. Replace any oil-soaked, cracked, or tapered shoes. Renew hold-down pins, return springs, and adjuster springs in pairs; hardware is cheap insurance in Kawasaki Mule SX Brake Maintenance.
Wheel-cylinder check
1. Peel back the dust boots; any wetness means rebuild/replace. Pistons must move smoothly with light pedal pressure. This is a key gate in the Kawasaki Mule SX 600 610 Brake Maintenance Guide because sticky pistons cause pull and rapid glazing.
Clean & lube points
1. Only use brake cleaner on friction surfaces. Apply a whisper-thin high-temp brake grease to backing-plate rub pads, anchor points, and the star-wheel threads—never on linings or drum. Clean hardware reduces noise and ensures consistent Kawasaki Mule SX Brake Maintenance results.
Reassembly & adjustment
1. Rebuild shoes and springs exactly as photographed. Turn the star-wheel out until the drum slides on with a light, even scuff. The Kawasaki Mule SX 600 610 Brake Maintenance Guide recommends finalizing with the wheel installed: pump the pedal, then tweak the adjuster for minimal free play without drag.
Fluid service & bleed
1. Dark or moisture-contaminated fluid lengthens pedal travel. Flush on time, starting farthest from the master cylinder. Accurate bleeding is foundational to Kawasaki Mule SX Brake Maintenance consistency over long downhills.
Torque & road test
1. Torque lug nuts properly. On a safe road, bed the shoes: 6–8 medium stops with cool-down rolls between. Note pedal height and any pull; re-adjust stars if the pedal drops after bedding as the shoes seat—a normal step within the Kawasaki Mule SX 600 610 Brake Maintenance Guide.

Severe-Use Tweaks, Troubleshooting, and Documentation

Mud and chaff pack inside drums, so shorten intervals after creek crossings or hay work. Add a quick rinse around backing plates, then re-adjust stars once dry. If you hear squeal, lightly scuff linings and drums, clean thoroughly, and re-bed—most noises vanish when Kawasaki Mule SX Brake Maintenance restores clean contact. Pulsation points to out-of-round drums or uneven shoe material transfer; measure and replace marginal parts. Finish every service with notes on shoe thickness, star-wheel position, and pedal height; tight records make the next Kawasaki Mule SX Brake Maintenance faster and catch trends early.

FAQs

My drums get hot after a short ride—what should I check first?

Start with star-wheel adjustment and return-spring strength. Drag from over-tight shoes or weak springs builds heat quickly; verify wheel-cylinder pistons retract and that the parking-brake cable fully releases.

The pedal is high but the Mule still pulls—why?

Uneven shoe contact or a sticky wheel-cylinder on one side is likely. Inspect for tapered wear, free up the adjuster, renew hardware, and bleed fresh fluid to restore even bite across the axle.
