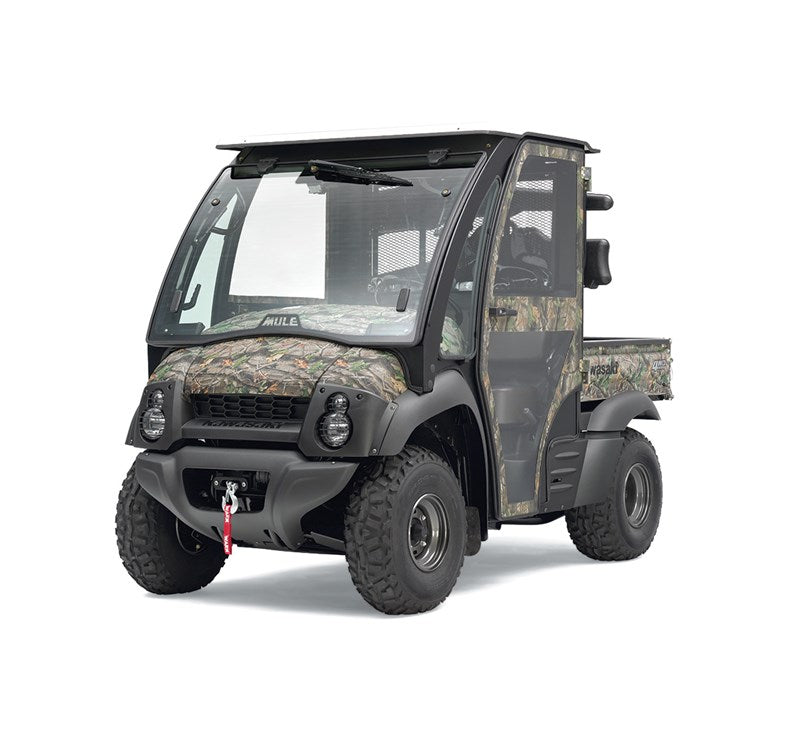

Kawasaki Mule SX/600/610 Fluids Guide

Fluids are the cheapest insurance you can buy for a Mule that has to start, idle, tow, and stop—every day. This guide breaks down what each fluid does, when to change it (based on your SX/600/610 maintenance spreadsheet), and the shop habits that keep leaks, glazing, and heat at bay.

The Essentials: What Each Fluid Does

• Engine Oil: Carries away heat, suspends contaminants, and lubricates cam/rocker/gear interfaces so the single-cylinder lives a long, quiet life.
• Oil Filter: Traps particulates before they circulate. Pair changes with oil service.
• Front Final Gearcase Oil: Protects the front reduction gears under slow, high-torque steering and 4×4 work.
• Transmission Oil: Keeps the rear reduction/drive components happy during creeping, towing, and stop-start chores.
• Brake Fluid: Transfers pedal force; moisture contamination lowers boiling point and lengthens pedal travel.
• Air-Cooling System (fins, shrouds, fan): Manages engine heat by moving air across cylinder/head fins. Keep fins clean, shrouds and ducts intact, and the cooling fan (if equipped) unobstructed to prevent hot spots and power loss.

Kawasaki Mule SX 610 600 Intervals At A Glance

Use whichever comes first—hours or distance—and layer in the time-based items:

After 50 hours / ~600 miles (initial service):

• Engine oil — change
• Oil filter — replace
• Front final gearcase oil — change
• Transmission oil — change

Every 250 hours / ~3,100 miles (regular service):

• Engine oil — change

Every 500 hours / ~6,200 miles (deep service):

• Oil filter — replace
• Front final gearcase oil — change
• Transmission oil — change

Time-based replacements (regardless of miles/hours):

• Brake fluid — change every 2 years
• Master-cylinder cup & dust seal — replace every 2 years
• Wheel-cylinder assembly — replace every 2 years
• Brake hoses — replace every 4 years

Severe use (dust, heavy towing, slow idling, creek crossings): inspect earlier and shorten oil and gearcase intervals.

Choosing The Right Fluids (and Why It Matters)

Engine Oil

Stick with OEM-approved viscosity for your climate. Cold mornings favor lower winter ratings for faster flow; extreme summer heat benefits from viscosities that resist thinning.

Use ATV/UTV-safe oil with correct additive packs; automotive “energy conserving” oils can affect clutch feel in some driveline designs.

Front Final Gearcase & Transmission Oils

Use the specified gear oil or OEM drive fluid. Additives tuned for hypoid contact reduce whine and pitting under slow, high-load work.

Do not mix types; if uncertain, fully drain before refilling.

Brake Fluid

Use the DOT rating specified on the reservoir cap. Mixing ratings without a full flush is asking for spongy pedals.

Air-Cooling System Care

• Clean fins gently: Use low-pressure air or a soft brush to remove chaff/mud from cylinder and head fins—avoid pressure washers that bend fins or drive water into connectors.
• Inspect shrouds/ducts: Ensure plastic shrouds, rubber seals, and deflectors are present and clipped tight so airflow is directed over the fins.
• Verify fan operation (if equipped): Confirm the engine cooling fan spins freely and isn’t fouled by debris; check harness/connector condition.
• Heat-management habits: Minimize long hot-day idling, use low range when towing/hauling to reduce load and oil temps, and keep CVT/engine air intakes clear.

Clean, Repeatable Service Steps (Shop-Proven)

Engine Oil & Filter

• Warm up briefly for faster drain.
• Drain, replace crush washer, torque the plug properly.
• Pre-oil the new filter gasket, install hand-tight per instructions.
• Refill, run 30–60 seconds, leak check, re-verify level.

Front Final Gearcase & Transmission

• Crack the fill plug first (prevents a drained case you can’t refill).
• Drain fully; inspect magnet for glitter vs. chunks.
• Reinstall drain plug, fill to spec level, confirm no foaming or leaks after a short drive.

Brake Fluid (Time-Based)

• Vacuum/bottle bleed with fresh fluid from a sealed container.
• Keep the reservoir topped to avoid reintroducing air.
• Finish with a firm-pedal check and an absence of sweats at banjos.

Air-Cooling System (If Servicing/Cleaning)

• Work on a cool engine. Remove seats/panels to access shrouds and fins.
• Blow out debris with low-pressure air; use a soft brush between fins—do not bend or pry fins.
• Inspect shrouds/ducts and fasteners; replace missing clips and seals so airflow isn’t leaking around the fins.
• Spin the cooling fan by hand (if equipped) to confirm free movement; clear any obstructions.
• After a short test run, recheck that no debris is re-ingesting through the intakes.

Severe-Duty Tweaks That Pay Off

• Dust & chaff: Inspect engine air filter and CVT intake every oil change; high intake restriction overheats oil and driveline.
• Water crossings: If the gearcase/trans vented low, check for milkiness—change immediately.
• Towing & plowing: Shorten engine oil intervals; heat cycling shears viscosity faster at low vehicle speeds.

Kawasaki Mule SX 600 610 Reference Table

(Follow your spreadsheet for exact applicability and align hours/miles with how the unit is used.)

Recordkeeping = Fewer Comebacks

Log date, hours, miles, what you used, and any findings (glitter on magnet, dark brake fluid, seep at case seam). Those breadcrumbs help you predict the next service, order parts ahead, and schedule around busy weeks.

Recommended Reading

• Kawasaki Mule SX/600/610 Maintenance Schedule
• Kawasaki Mule SX/600/610 Oil Change Guide
• Common Kawasaki Mule SX/600/610 Issues
• Kawasaki Mule SX/600/610 Air Filter Maintenance

FAQs

I hit the hour limit but not the miles—should I still change fluids?

Yes. Use whichever threshold you hit first. Hours reflect idle and low-speed workload that miles don’t capture.

The magnet had a light “sparkle.” Is that normal?

A fine paste during early services is typical. Flakes, chips, or recurring heavy glitter point to abnormal wear—shorten intervals and inspect gears/bearings before returning to service.
