Polaris Ranger 1000 Front Gearcase & Transmission Fluid Service Guide

Polaris Ranger 1000 Front Gearcase & Transmission Fluid Service Guide

May 29, 2025 by Jenny Wilkins

The Polaris Ranger 1000’s AWD system is only as good as the oil that cushions its gears. Two separate housings need attention:

  • Front Gearcase (Demand Drive unit) – sends power to the front wheels when AWD engages.
  • Main Gearcase (Transmission) – houses low/high/park gears and reverse.

Polaris specifies different fluids, change intervals, and capacities for each, so lumping them together at oil-change time is the smart way to avoid missed service. Get our Polaris Fluid Kit today!

Factory Intervals—When to Service

Interval What to do Notes
25 hrs / 500 mi break-in Inspect levels; top off if low One-time check after new or rebuilt drivetrain
Every 200 hrs / 2,000 mi or yearly Drain & refill both housings Cut the interval in half for heavy mud, deep-water, or towing duty



Specs at a Glance

Housing Polaris Fluid Capacity Fill-plug torque Drain-plug torque
Front Gearcase Demand Drive Fluid 10–12 fl oz (300–350 mL) 8–10 ft-lb (11–14 N·m) 11 ft-lb (15 N·m)
Transmission AGL Gearcase Lubricant & Transmission Fluid 41 fl oz (1,200 mL) 10–14 ft-lb (14–19 N·m) 10–14 ft-lb (14–19 N·m)



Tool & Supply Checklist for Polaris Ranger 1000 Fluid Change

  • 1 qt Demand Drive Fluid + 2 qts AGL (you’ll use a bit less).
  • 6 mm Allen/torx bits, ratchet, drain pans, funnel, nitrile gloves, rags.
  • Torque wrench that reads 8–14 ft-lb.
  • Small wire brush and blue shop-towel squares for spotless sealing seats.

Step-by-Step: Polaris Ranger 1000 Transmission Fluid (Main Gearcase)

  1. Level it up – Park on flat ground, shift to PARK, chock wheels.
  2. Pull the fill plug (rear face of gearcase). Removing it now prevents a vacuum later.
  3. Drain – Through the skid-plate hole, crack the bottom plug and let 41 fl oz of used AGL run out.
  4. Clean & re-install drain plug – Inspect its magnet for chunks; fine fuzz is normal. Torque 10–14 ft-lb.
  5. Refill – Add AGL until fluid kisses the lower thread of the fill port. A small flashlight helps you see the meniscus.
  6. Re-install fill plug – Same 10–14 ft-lb spec. Wipe the case dry so any new seep is obvious.

Step-by-Step: Polaris Ranger 1000 Front Gearcase Fluid (Demand Drive)

  1. Optional wheel removal – Popping off the passenger-side front wheel gives clear sight-lines but isn’t mandatory.
  2. Pull the side fill plug – Right side of the housing—this also acts as the level check.
  3. Drain – Place a pan, remove the bottom right drain plug, and watch 10-12 fl oz of dark fluid exit.
  4. Clean, inspect, reinstall drain plug – Torque 11 ft-lb.
  5. Refill – Pump in Demand Drive Fluid until it just reaches the bottom thread of the fill hole.
  6. Torque fill plug – 8–10 ft-lb. Quick brake-clean spritz keeps the case spotless for the leak check.

Post-Service Checklist

  • Roll five feet forward & back in AWD to splash oil across gear faces; re-check both fill ports.
  • Look for drips after the first ride—a sticky finger across the housings will instantly tell you if a plug is weeping.
  • File it – Log date, hours, and mileage in the back of your manual; it adds resale value and keeps warranty disputes away.

Why Fresh Polaris Ranger 1000 Fluid Matters

  • Load shock protection – AGL’s extreme-pressure additives cushion the high-torque starts Ranger owners love.
  • Corrosion prevention – Demand Drive Fluid fights rust inside the sprague clutch; water intrusion during creek crossings destroys bearings fast.
  • Clutch engagement – Dirty front-gearcase oil lets the sprague stick, leading to slow or no AWD lock-in on slippery climbs.

Recommended Reading



Ready to Wrench?

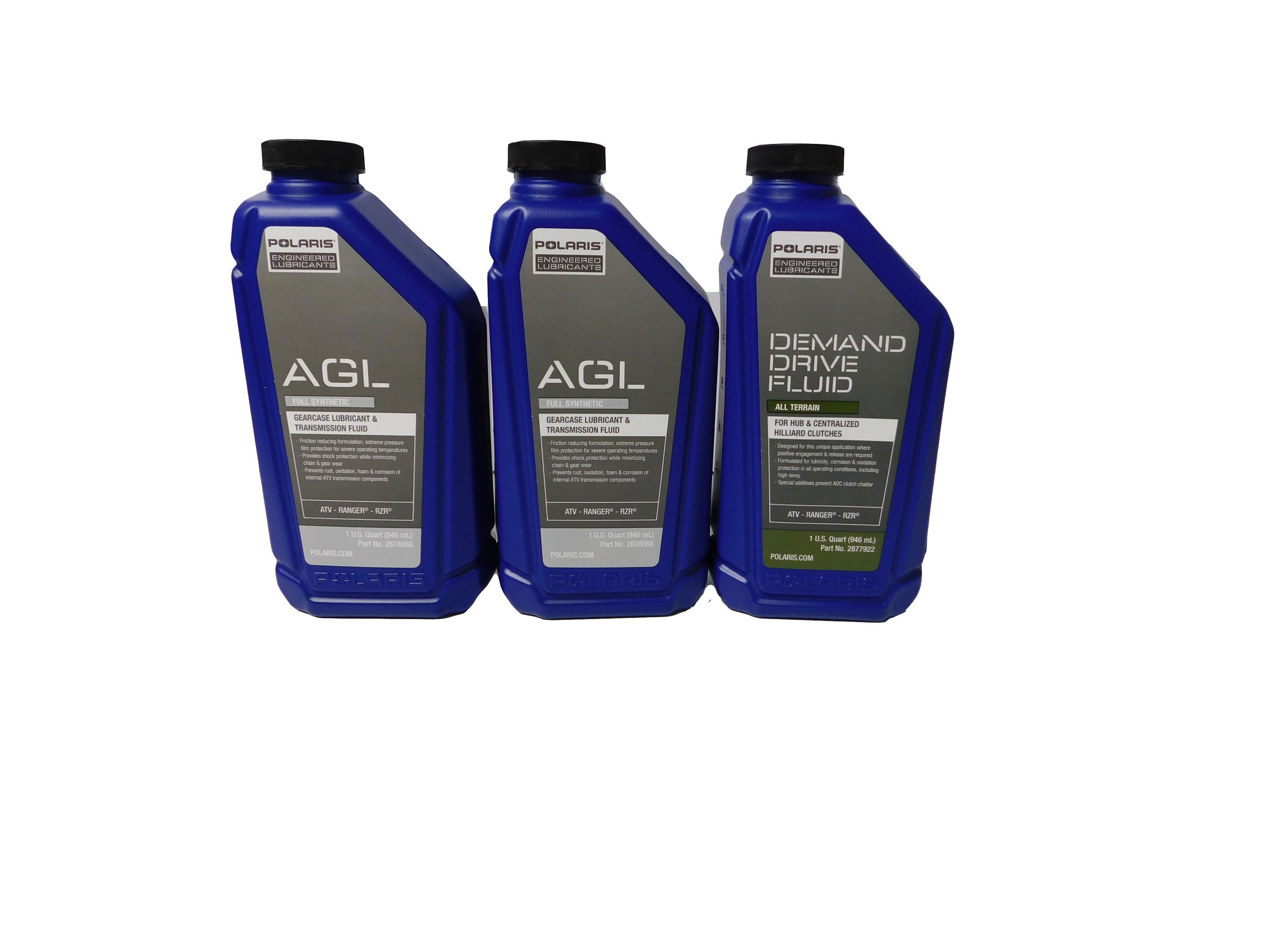

Pick up our Polaris Ranger 1000 Drivetrain Fluid Kit—pre-measured AGL and Demand Drive Fluid exclusively at PowersportsAuthority.com. Order today, swap tomorrow, and put power to the ground with confidence on every ride.

FAQS

How often should I change the front gearcase and transmission fluids on a 2025 Polaris Ranger 1000?


Polaris recommends a one-time level check at 25 hours / 500 miles (break-in) and a full drain-and-refill of both housings every 200 hours / 2,000 miles or once a year. If you ride in deep mud, cross water frequently, or tow heavy loads, cut that interval in half to keep the drivetrain protected.

What fluids and torque specs do the front gearcase and transmission require?


Front Gearcase (Demand Drive): 10–12 fl oz of Polaris Demand Drive Fluid. Torque the drain plug to 11 ft-lb and the fill plug to 8–10 ft-lb.

Main Gearcase (Transmission): 41 fl oz of Polaris AGL Gearcase & Transmission Fluid. Torque both the fill and drain plugs to 10–14 ft-lb. Using the correct fluids and torque values prevents leaks, protects gears, and ensures reliable AWD engagement.
