Polaris Ranger 1000 Cooling-System Maintenance

Polaris Ranger 1000 Cooling-System Maintenance

May 30, 2025 by Jenny Wilkins

The Polaris Ranger 1000’s liquid-cooling loop has one mission: move heat from the 999 cc twin to the air. Neglect the system and you risk blown head gaskets or a limp-mode crawl back to camp. Fortunately, Polaris makes upkeep simple—and the steps below keep you inside factory specs.

Polaris Ranger 1000 Cooling Service Intervals

  • Before every ride

    • Peek at the overflow bottle; fluid should sit between “MIN” and “MAX” when cold.
    • Check the radiator screen and front-mounted fins for packed mud or seed pods.

  • 25-hour / 500-mile break-in

    • Verify coolant level; top off premix if it dropped while air purged from new lines.

  • Every 200 hours / 2,000 miles—or yearly

    • Clean radiator fins, flush debris from the fan shroud, and inspect hoses for weeping.

  • Every 5 years (major)

    • Drain and replace all coolant with Polaris 50/50 Premix; do not dilute with water.

Tip: Always riding in deep mud or slow-speed tow work? Cut those hour/mile intervals in half.

Supplies You’ll Need for Polaris Ranger 1000 Cooling System Care

  • 1 gallon Polaris 50/50 Antifreeze Premix (you’ll use ~5 qts / 4.75 L).
  • New radiator cap if the original is more than five seasons old—weak springs drop boiling point.
  • Long-neck funnel, clean five-gallon drain pan, nitrile gloves, shop rags.
  • Soft-bristle nylon brush and low-pressure garden hose for fin cleaning.

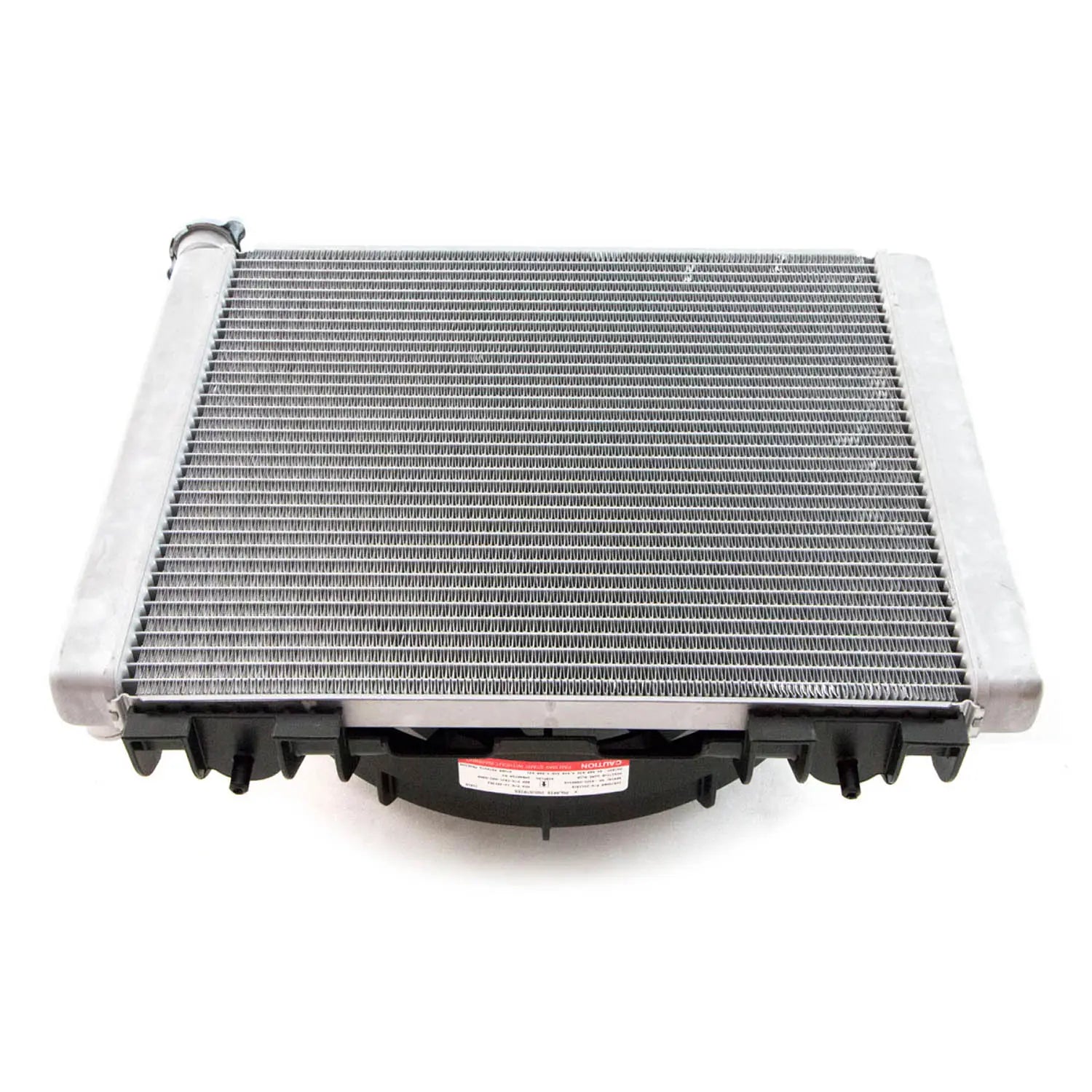

Polaris Ranger 1000 Radiator & Fin Cleaning

  • Cool engine first—never blast hot fins with cold water.
  • Remove hood panel for direct access to the radiator face.
  • Dry brush heavy caked mud off fins, sweeping straight with the rows to avoid folding them.
  • Back-flush with hose from the engine-side outward; this pushes dirt the way it entered.
  • Screen check—pop out the plastic grill, rinse, and reinstall. A clogged screen stops as much air as a clogged core.
  • Fan shroud inspection—spin the electric fan by hand; it should move freely with no grinding.

Complete Polaris Ranger 1000 Coolant Flush (5-Year Service)

  • Raise cargo bed and remove the pressure cap only when the engine is stone-cold—escaping steam burns.
  • Open the drain: crack the lower radiator hose or block drain plug; catch the spent coolant.
  • Remove overflow-bottle cap and let it empty; rinse the bottle with fresh premix.
  • Close drains, then fill the radiator slowly with premix until fluid sits at the filler neck.
  • Burp the system:
    • Start engine, idle with cap off until thermostat opens (you’ll see flow).
    • Snap throttle twice to purge trapped air; top off to neck again.
    • Use bleeder screw on cylinder if air still exists (see manual for details on location).
  • Install radiator cap and fill overflow bottle to mid-range mark.
  • Test-drive 5 minutes, let the engine cool, and verify the bottle hasn’t dropped below MIN. Add as needed.

Polaris Ranger 1000 Over-Heat Prevention Cheatsheet

  • Keep fins straight—a cheap plastic fin comb straightens folded rows.
  • Watch accessory placement—light bars or winch relays that block the radiator face raise temps fast.
  • Use low gear when crawling—higher RPM spins the water pump faster, improving flow through small passages.
  • Monitor the dash temp lamp—if it flickers, stop, idle in neutral, and run the fan until the light clears.
  • Store premix on board during remote rides; a stick-punctured hose is fixed in minutes with tape and extra coolant.

Recommended Reading

Ready to Wrench?

Stock up on genuine Polaris 50/50 premix, a fresh radiator cap, and new hose clamps. Tackle the flush this weekend and keep your Ranger running cool for seasons to come.

FAQS

What supplies are required to service the Polaris Ranger 1000 cooling system?

Gather one gallon of Polaris 50/50 antifreeze premix (about 5 qt will be used), a new radiator cap if the original is over five seasons old, a long-neck funnel, a 5-gallon drain pan, nitrile gloves, shop rags, a soft-bristle nylon brush, and a low-pressure garden hose.

How do I clean the radiator fins on my Polaris Ranger 1000?

First let the engine cool completely, then remove the hood panel for direct access. Dry-brush caked mud straight with the fin rows, back-flush with a low-pressure hose from the engine side outward, rinse the plastic radiator screen, reinstall it, and verify that the fan spins freely without grinding.
